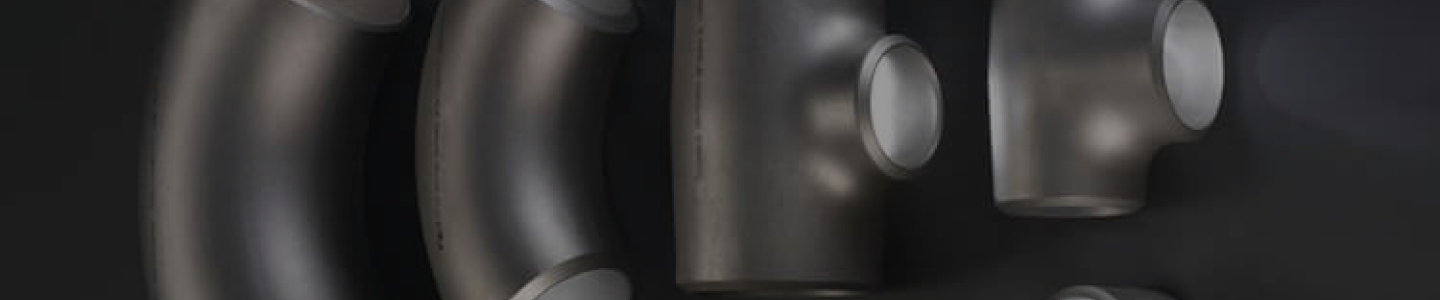

Monel Pipe fitting
The Monel pipe fittings from Icon Steel are precisely engineered to meet the highest standards of durability and performance. Constructed to support demanding environments, such pipe fittings find applications in industries where resistance to corrosion, high temperature, and pressure is of essence.
Monel alloys are noted for their excellent mechanical properties and resistance to acids and alkalis; therefore, it will be a reliable fitting for any critical application.
Key Features
- Superior Corrosion Resistance
Resistant to corrosive environments, including seawater, acids, and alkaline solutions.
- High Strength
Maintains mechanical properties under high pressure and temperature.
- Leak-Proof Connections
Precision-engineered to provide secure, leak-proof connections in critical systems.
- Long Service Life
Built for durability, ensuring reliable performance in demanding applications.
Specifications
| Specification | Details |
|---|---|
| Material Composition | Nickel (63-70%), Copper (28-34%), Iron (2.5-5%), Manganese (up to 2%) |
| Yield Strength | 240-345 MPa |
| Tensile Strength | 550-750 MPa |
| Elongation | 20-35% |
| Corrosion Resistance | Excellent in acidic and alkaline environments |
| Thickness Range | 0.5 mm to 50 mm |
| Width and Length | Customizable as per requirement |
| Standards Compliance | ASTM B366, ASME SB366, DIN, EN |
| Surface Finishes | Annealed, Polished, Brushed |
| Available Coating | Epoxy, Zinc, Chrome, Custom Coating |
| Operating Temperature Range | -100°C to 400°C |
Mechanical Properties Chart
| Property | Value |
|---|---|
| Tensile Strength | 550-750 MPa |
| Yield Strength | 240-345 MPa |
| Elongation at Break | 20-35% |
| Hardness | Rockwell B 75-85 |
| Impact Strength | High impact resistance |
Chemical Composition Chart
| Element | Percentage |
|---|---|
| Nickel (Ni) | 63-70% |
| Copper (Cu) | 28-34% |
| Iron (Fe) | 2.5-5% |
| Manganese (Mn) | uo to 2% |
| Silicon (Si) | 0.5% |
| Carbon (C) | 0.3% |
| Sulfur (S) | 0.024% |
Industrial Applications
- Marine Engineering
Ideal for saltwater and offshore environments, providing excellent resistance to seawater corrosion.
- Chemical Processing
Withstands harsh chemicals, acids, and alkalis, making it suitable for chemical plants.
- Oil and Gas
Used in pipelines and offshore drilling platforms due to its strength and corrosion resistance.
- Aerospace
Suitable for aircraft components that require high performance under extreme conditions.
- Power Generation
Employed in heat exchangers and other critical components in power plants.
FAQs
What makes Monel pipe fittings different from stainless steel fittings?
Monel pipe fittings have higher resistance to corrosion, especially in acidic and marine environments, and can withstand higher temperatures compared to stainless steel fittings.
Can Monel pipe fittings be used in high-temperature applications?
Yes, Monel pipe fittings can operate effectively in temperatures ranging from -100°C to 400°C, making them suitable for high-temperature applications.
Are there different grades of Monel available for pipe fittings?
Yes, Monel comes in various grades such as Monel 400 and Monel K500, each offering different levels of strength and corrosion resistance, depending on the application.
How do I choose the right surface finish for my Monel pipe fittings?
The choice of surface finish depends on the application environment. For high-corrosion areas, an epoxy or zinc coating is recommended, while polished or brushed finishes are suitable for aesthetic purposes or environments with lower corrosion risks.
