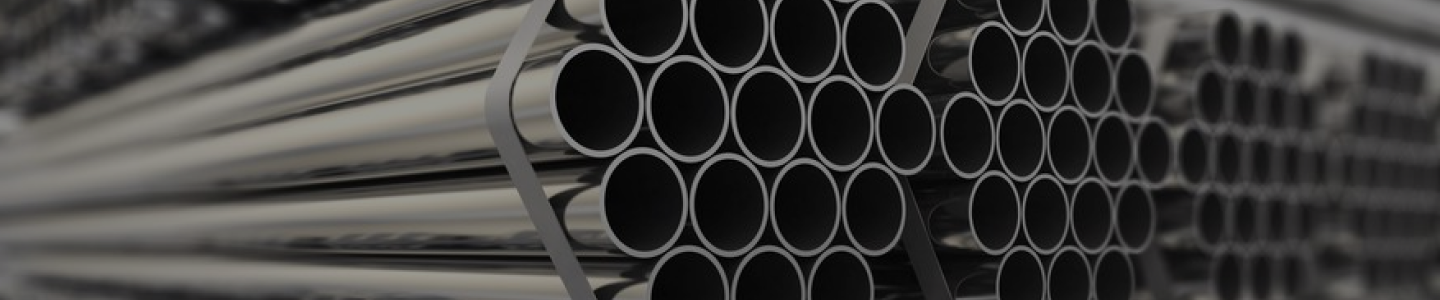

Inconel Tube
Icon Steel’s Inconel Tubes are meticulously crafted to excel in environments where ordinary materials fail. With exceptional resistance to heat, corrosion, and pressure, these tubes are indispensable in critical industries such as oil and gas, automotive, and power generation. Designed to meet the most demanding requirements, Icon Steel’s Inconel Tubes ensure long-lasting performance and reliability, making them the go-to choice for professionals in need of durable and versatile tubing solutions.
Key Features
- Heat Resistance
Can operate at extremely high temperatures, making it perfect for demanding environments
- Corrosion Resistance
Resistant to oxidation, carburization, and other forms of chemical degradation.
- Mechanical Strength
Maintains high tensile strength and toughness even at elevated temperatures.
- Long Service Life
Designed for longevity in harsh environments, reducing maintenance needs.
Inconel Tube Specifications
| Specification | Details |
|---|---|
| Material Composition | Nickel (58-72%), Chromium (14-23%), Iron (3-5%), with trace amounts of Molybdenum, Aluminum, and Titanium |
| Yield Strength | 414 MPa |
| Tensile Strength | 827 MPa |
| Elongation | 30% |
| Corrosion Resistance | Excellent in both acidic and alkaline environments |
| Thickness Range | 0.5 mm to 20 mm |
| Width and Length | Customizable up to 1200 mm width and 6000 mm length |
| Standards Compliance | ASTM B167, ASME SB-167, ISO 6208 |
| Surface Finishes | Mill finish, Polished, Brushed, and Custom finishes |
| Available Coatings | Aluminide, Ceramic, and Custom Coatings |
| Operating Temperature Range | -196°C to 982°C |
Mechanical Properties Chart
| Property | Value |
|---|---|
| Tensile Strength | 827 MPa |
| Yield Strength | 414 MPa |
| Elongation at Break | 30% |
| Hardness | Rockwell B88 |
| Impact Strength | 110 J |
Chemical Composition Chart
| Element | Composition (%) |
|---|---|
| Nickel (Ni) | 58-72 |
| Chromium (Cr) | 14-23 |
| Iron (Fe) | 3-5 |
| Molybdenum (Mo) | 2-3 |
| Aluminum (Al) | 0.4-1.5 |
| Titanium (Ti) | 0.4-1.2 |
| Carbon (C) | ≤ 0.08 |
| Silicon (Si) | ≤ 0.5 |
| Manganese (Mn) | ≤ 1.0 |
Industrial Applications for Icon Steel’s Inconel Tubes
- Oil and Gas
Inconel Tubes are required for drilling equipment, downhole tools, and offshore platforms due to their durability, high-pressure and corrosive environment resistance.
- Automotive
Inconel Tubes are used in emission systems, turbochargers, and heat exchangers, as they have a high-temperature resistance capability and are able to withstand harsh conditions in automotive applications.
- Power Generation
In the industry, they are essential in boilers, heat recovery steam generators, and nuclear reactors, and also have good performance at extremely high thermal conditions.
- Pharmaceuticals
This material is used in both sterilization equipment and maintains structural integrity at high-temperature, chemically active environments.
FAQs
What materials are Icon Steel’s Inconel Tubes made of?
The composition of Icon Steel’s Inconel Tubes are primarily as follows, Nickel (58-72%), Chromium (14-23%), Iron (3-5%), and additional elements such as Molybdenum, Aluminum, and Titanium to enhance specific properties.
Can Icon Steel’s Inconel Tubes be made for specific industry applications?
Icon Steel offers multiple variations for Inconel Tubes, and can adjust to tailor to specific needs of its clients such as thickness (ranging from 0.5 mm up to 20 mm) and lengths (up to 6000 mm) for individual industrial needs.
How well do Icon Steel’s Inconel Tubes perform in extremely high-temperature environments?
Icon Steel’s Inconel Tubes have a high-temperature range of -196°C to 982°C, giving them the ability to perform in extreme conditions, which makes Inconel Tubes ideal for industry applications that require high temperature resistance.
Are there any additional finishes and coatings available for Inconel Tubes?
Icon Steel provides various surface finishes including mill, polished, and brushed, as well as coatings like aluminide and ceramic to provide additional wear resistance and corrosion protection to Inconel Tubes.
