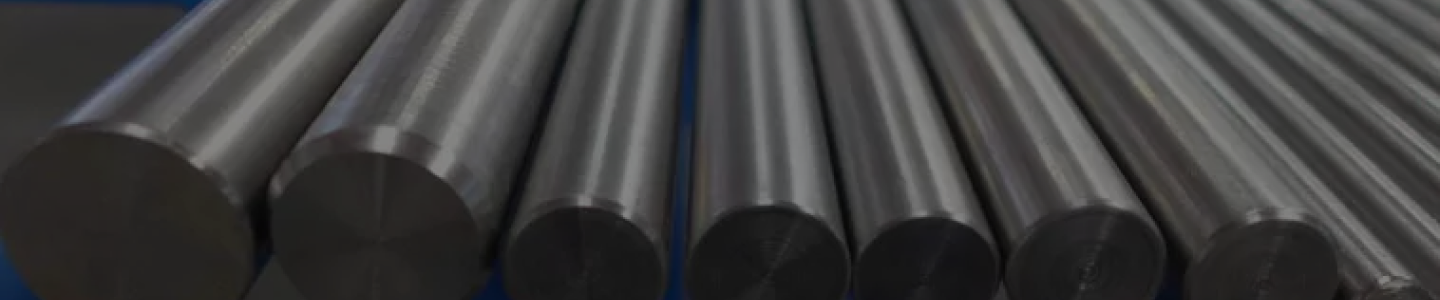

Inconel round bar & rod
The Inconel Round Bar & Rod from Icon Steel are purpose-built for high-stress, cold-sensitive industries that require a material with extremely strong but corrosive qualities designed to withstand the harshest environment.
Comprising of high-quality Inconel alloys, these bars and rods offer outstanding oxidation resistance and chemical corrosion, paired with superior mechanical properties. It is suitable for use in aerospace, marine, chemical processing and power generation applications where reliability and resistance to wear are essential.
Key Features
- High Strength
Retains mechanical properties at elevated temperatures, providing long-lasting performance
- Corrosion Resistance
Resistant to pitting, crevice corrosion, and stress-corrosion cracking.
- Machinability
Can be easily machined and fabricated for various industrial applications.
- Heat Resistance
Suitable for extreme temperature applications, maintaining stability and strength
Inconel Round Bar and Rod Specifications
| Specification | Details |
|---|---|
| Material Composition | Nickel (58-72%), Chromium (14-23%), Iron (3-5%), with trace amounts of Molybdenum, Aluminum, and Titanium |
| Yield Strength | 414 MPa |
| Tensile Strength | 827 MPa |
| Elongation | 30% |
| Corrosion Resistance | Outstanding in harsh chemical and marine environments |
| Thickness Range | 5 mm to 200 mm |
| Length | Up to 6 meters or customizable as per requirement |
| Standards Compliance | ASTM B446, ASME SB-446, ISO 6208 |
| Surface Finishes | Hot Rolled, Cold Drawn, Polished, and Custom finishes |
| Available Coatings | Aluminide, Ceramic, and Custom Coatings |
| Operating Temperature Range | -196°C to 982°C |
Mechanical Properties Chart
| Property | Value |
|---|---|
| Tensile Strength | 827 MPa |
| Yield Strength | 414 MPa |
| Elongation at Break | 30% |
| Hardness | Rockwell B88 |
| Impact Strength | 110 J |
Chemical Composition Chart
| Element | Composition (%) |
|---|---|
| Nickel (Ni) | 58-72 |
| Chromium (Cr) | 14-23 |
| Iron (Fe) | 3-5 |
| Molybdenum (Mo) | 2-3 |
| Aluminum (Al) | 0.4-1.5 |
| Titanium (Ti) | 0.4-1.2 |
| Carbon (C) | ≤ 0.08 |
| Silicon (Si) | ≤ 0.5 |
| Manganese (Mn) | ≤ 1.0 |
Inconel Round Bar & Rod Applications in Industrial
- Aerospace Industry
used in turbine blades, exhaust systems and fasteners demanding high strenghts and hig temperature resistance.For use with marine hardware and fasteners, as well as underwater footings In applications where exposed to corrosive saltwater Protects your marine grade products from corrosion prolonging life of product
- Chemical Processing
Used in Reactor Vessels, high pressure Heat Exchangers and piping system to withstand aggressive chemicals along with High temperature.
- Power Generation
Inconel Sheets have applications in the power generation industry. Specifically, manufacturers can utilize Inconel Sheets in gas turbine components and nuclear reactors because these sheets have high thermal and mechanical stability.
FAQs
What is it that makes Icon Steel Inconel Round Bar & Rod perfect for high-temperature uses?
It is a nickel-based steel alloy and offers vivacious resistance to sluggish warmth, making it be as wire by the use of handy useful resource adequately beyond 982 ā°C.
Is it possible to customize size and length for Inconel Round Bar & Rod?
Yes, the Inconel Round Bar & Rod of Icon Steel are customizable to select thickness, diameter and length in accordance with your project needs.
Are Namur Steel & Icon Steel Inconel Hex Bar are corrosion-resistant in chemical environments?
They have used the Inconel alloy in these bars and rods because it shows powerful corrosion resistance especially against harsh chemicals, attack from marine conditions that will help them to be useful for all kind of such applications.
Inconel Round Bar & Rod Surface Finishings and Coatings
At Icon Steel, we are able to provide a variety of surface finishes that extend beyond the simple hot-rolled south-of-the-border options like cold-drawn and polished. These include a range of protective coatings, such as aluminide and ceramic, designed to improve performance under specific conditions.
