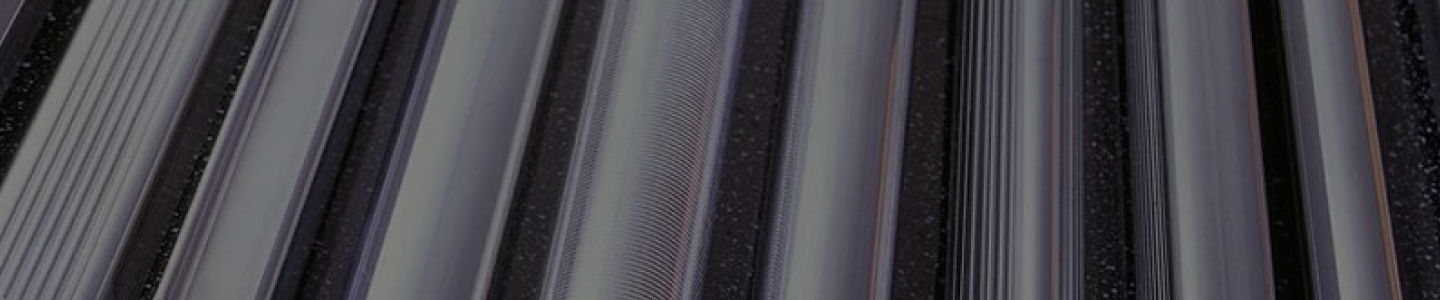

Hastelloy Tube
Icon Steel manufactures Hastelloy tubes for industries requiring ultra-high corrosion resistance and durability under extreme operation conditions. Made of a premium nickel-based alloy, the tubes serve best in applications that involve harsh chemicals, high temperatures, and extreme pressures. Be it chemical processing, aerospace, or maritime applications
—it doesn’t matter what the industry is. Any application will have an Icon Steel Hastelloy tube provided for long, life-spanned, reliable service with designs meeting and exceeding stringent industry standards.
Key Features
- Corrosion Resistance
Excellent resistance to a wide range of corrosive chemicals, including acids and salts.
- High-Temperature Capability
Retains strength and stability at high temperatures.
- Durability
Maintains structural integrity under extreme conditions.
- Versatility
Used in critical applications such as chemical processing, power generation, and aerospace.
Hastelloy Tubes Specifications
| Specification | Details |
|---|---|
| Material Composition | Nickel, Molybdenum, Chromium, Iron, Tungsten, Cobalt |
| Yield Strength | 275 MPa |
| Tensile Strength | 690 MPa |
| Elongation | 40% |
| Corrosion Resistance | Excellent resistance to pitting, crevice corrosion, and stress corrosion cracking |
| Thickness Range | 0.5 mm to 20 mm |
| Diameter Range | 6 mm to 250 mm |
| Length Range | Up to 6 meters (custom lengths available) |
| Standards Compliance | ASTM B622, ASME SB-622, ISO 15156 |
| Surface Finishes | Annealed, Pickled, Polished |
| Available Coating | Anti-corrosion coatings, Passivation |
| Operating Temperature Range | -200°C to +1250°C |
Mechanical Properties Chart
| Mechanical Property | Value |
|---|---|
| Tensile Strength | 690 MPa |
| Yield Strength | 275 MPa |
| Elongation at Break | 40% |
| Hardness | 95 HRB (Rockwell Hardness) |
| Impact Strength | 150 J (Charpy V-notch) |
Chemical Composition Chart
| Element | Percentage (%) |
|---|---|
| Nickel (Ni) | 55-70 |
| Molybdenum (Mo) | 16-18 |
| Chromium (Cr) | 14.5-16.5 |
| Iron (Fe) | 4-7 |
| Tungsten (W) | 3-4.5 |
| Cobalt (Co) | 2.5 max |
| Carbon (C) | 0.01 max |
| Manganese (Mn) | 1 max |
| Silicon (Si) | 0.08 max |
| Phosphorus (P) | 0.04 max |
| Sulfur (S) | 0.03 max |
Industrial Applications of Hastelloy Tube
- Chemical Processing
In the heat exchangers, reactors, and piping systems that are often exposed to strongly corrosive chemicals and high temperatures.
- Aerospace
Applied in highly heated parts of aero-engines, fuel lines, and exhaust systems where high strength and oxidation resistance are necessary.
- Marine Engineering
Used in seawater applications such as desalination plants, offshore drilling platforms, and shipbuilding due to its excellent resistance to saltwater corrosion.
- Pharmaceuticals
Sterile environments, handling highly reactive substances, contamination-free operation.
FAQs
What are the benefits that Hastelloy tubes offer to the Chemical processing sector?
Hastelloy tubes provide outstanding resistance to severe and corrosive chemicals because they are resistant to acids, alkalis, and solvents. They are thus very useful in critical chemical processing applications where durability and reliability over time are required.
Are Hastelloy tubes from Icon Steel tailor-made in terms of both dimensions and coatings?
Yes, Icon Steel offers customized services for Hastelloy tubes, including dimensions and lengths, combined with various surface coatings, such as anti-corrosion and passivation, to provide the best fit for your application.
What can be the maximum operating temperature for Hastelloy tubes?
The supplied Hastelloy tubes can stand temperatures as low as -200°C and as high as +1250°C; therefore, they can be used in both cryogenic and high-temperature working.
Do the Hastelloy tubes conform to international standards?
Yes, totally. The Hastelloy tubes from Icon Steel comply with major international standards such as ASTM B622, ASME SB-622, and ISO 15156 to ensure their quality and reliability for use in critical industries.
